How a polyurethane part is formed
A polyurethane part comes from mixing two liquid components that react inside the mold. The reaction releases heat and gas, the mix expands until it fills the cavity and, as it cures, takes its final shape. Depending on the formulation, the result is a rigid foam, used in insulation and housings, or a flexible foam, used in seats, pillows and supports.
The mold therefore does more than shape the part: it contains an expansion, must let air out in the right order and has to hold a stable temperature so the reaction is repeatable. The mix can be injected with a metering machine or poured into an open mold, and that choice also shapes the design.
Rigid foam: closure and internal pressure
Rigid foam expands forcefully and, once it fills the cavity, pushes against the mold walls. If the structure or the closure is not sized for that internal pressure, the mold opens slightly, the part comes out with flash or out-of-tolerance dimensions and, in extreme cases, the tooling deforms.
That is why mold stiffness, the clamping system and precise control of the shot quantity matter so much with rigid foam. The mold often foams around another component, such as a housing or a panel, and that insert must then be held so the expansion does not displace it.
Flexible foam: geometry and demolding

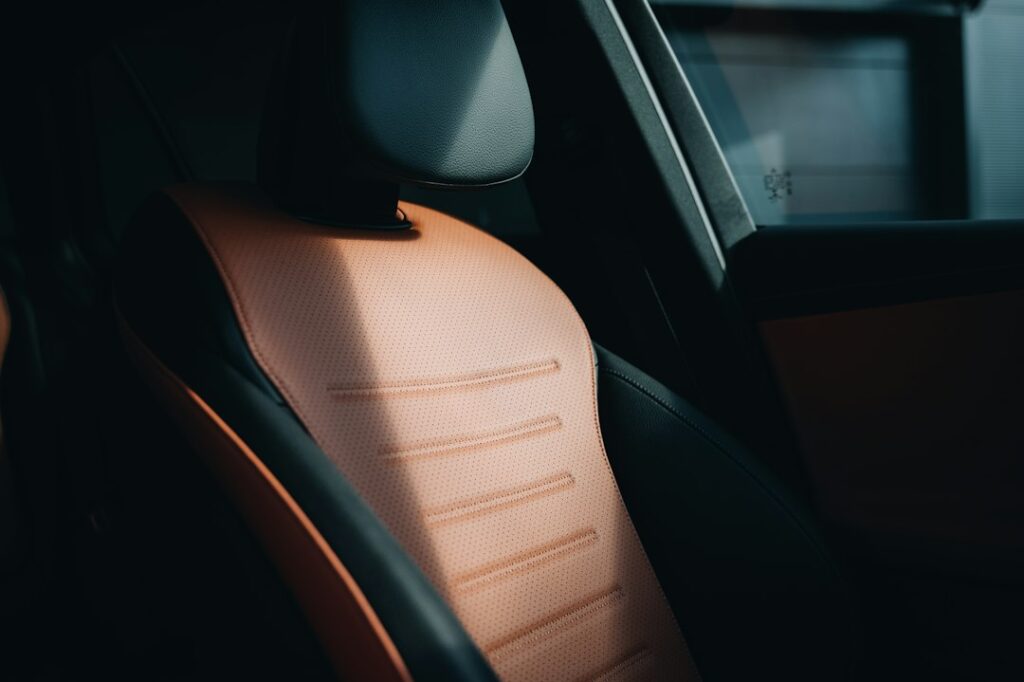

With flexible foam the internal pressure is usually lower, but geometry and surface matter more: a seat or an ergonomic support has curves, zones of different density and an outer skin the user touches. The mold has to reproduce that shape and leave a uniform surface.
Demolding is another critical point. The flexible part deforms as it is extracted, which allows undercuts that would be impossible on a rigid part, but it requires a parting line and an opening designed not to tear it. Parts with embedded metal frames or reinforcements also need fixing points for those inserts.
Quick comparison
| Aspect | Rigid polyurethane | Flexible polyurethane |
|---|---|---|
| Typical applications | Thermal insulation, housings, lightweight components | Seats, pillows, ergonomic supports |
| Main requirement | Containing the expansion pressure | Geometry, surface and demolding |
| Mold structure | Rigid, with robust closure and clamping | Enough for closure; more weight on the shape |
| Undercuts | Very limited | Possible if the part deforms on extraction |
| Inserts | Common: housings, panels | Common: frames and reinforcements |
The table summarizes general trends. Each polyurethane system behaves in its own way, and the real formulation data is what defines the final design.
Temperature, release agents and chemical compatibility
Mold temperature affects reaction speed, the skin of the part and the time until it can be demolded. That is why many polyurethane molds include thermal control circuits. A mold that heats unevenly produces parts with uneven density and surface.
The mold materials, seals, coatings and release agent must be compatible with the chemical system. Release agent also builds up with use and requires periodic cleaning of the surface, so that maintenance should be planned from the design stage.
The polyurethane supplier data sheet, with density, reaction times and recommended temperature, saves iterations in the mold design.
Checklist before requesting a quote
☐ 3D model, drawing or sample
☐ Target density
☐ Required surface or skin
☐ Embedded inserts
☐ Rigid or flexible
☐ Supplier data sheet
☐ Injection or pouring
☐ Release agent used
☐ Closure and clamping
☐ Venting
☐ Temperature control
☐ Mold material
☐ Expected volume
☐ Target demold time
☐ Metering equipment
☐ Cleaning plan
See our product lines for rigid polyurethane molds and flexible polyurethane molds.
Common questions.
Can the same mold be used for rigid and flexible foam?
Generally, no. Expansion pressure, venting, demolding and undercuts differ so much between the two systems that the mold is designed for one in particular.
Why do my parts come out with voids or unfilled areas?
It usually points to air trapped by insufficient or poorly placed venting, although the shot quantity, mold temperature and cavity orientation during filling also play a part.
Can you rework an existing polyurethane mold?
Yes. Venting, closure or surface can be corrected, thermal control can be added, or the cavity can be reproduced from the current mold or from a part.
